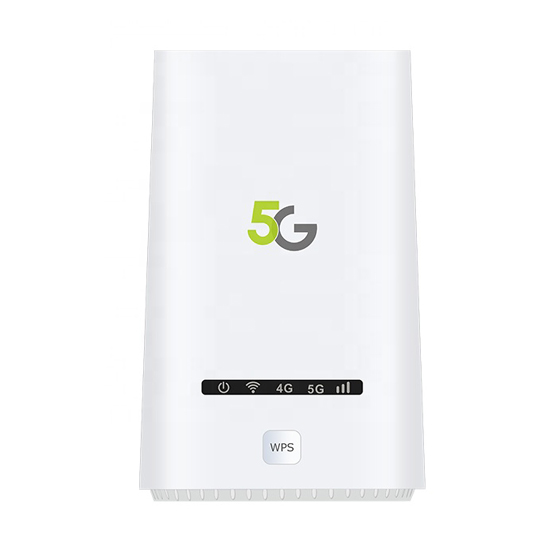

5G CPE | AOI-XM510

Supports NR/TDD-LTE/FDD-LTE.
5G: Upstream average rate1.7Gbps; Downstream average rate 1Gbps.
2.4G WIFI 802.11 b/g/n MIMO 2X2; 5.8G WIFI 802.11 b/g/n/ac MIMO 2X2.
Support VONR/VOLTE/VOIP.

Technical Specifications

Product Name 5G CPE Router
Model Number AOI-XM510
Chipset UNISOC: IVY510  Realtek: 8198D
Flash/RAM RAM:2G  ROM:DDR32G
WIFI Transmission Rate

5G:

Upstream average rate 1.7Gbps(@100MHz 1CC, 4RX,256QAM)

Downstream average rate 1Gbps(@100MHz 1CC, 2TX,256QAM)

4G:Downstream TDD/FDD LTE Cat12 :600Mbps Upstream TDD/FDD LTE Cat 13:150Mbps.

Power Supply 12V 2A
Transmission Range 300 Meters
Frequency 2.4GHz+5.8G
Interface

Built-in 2.4+5G dual-band antenna

Downstream 2*MIMO (2X2/4X2/8X2)

WiFi antenna(Built-in) Support 1.8V & 3.3V adaptive

9 LED indicator (power supply, WIFI,WPS, data connection, 3-color signalight, 4* network port light)

1xWPS Button

1xPower /DC Jack

1xMicro Usb

1xReset Button

1xSIM (FF) Support 1.8V & 3.3V adaptive

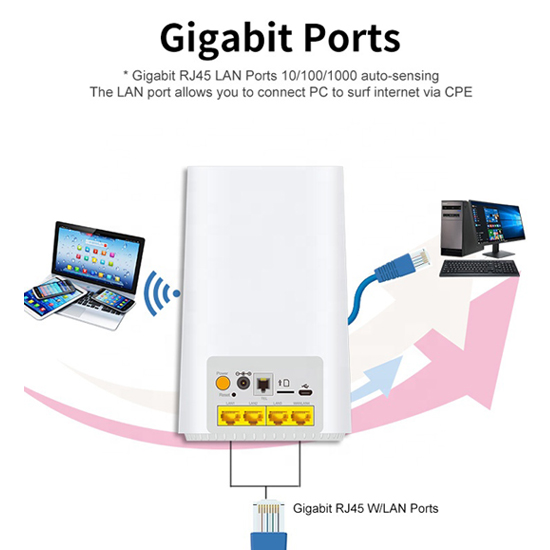

Port Ports:4 *10/100/1000 Mbps(3lan port,1 wan/lan port),1*RJ11 port.
Frequency Band

B1\3\5\7\8\34\38\39\40\41   NR:N78\79\41

(Customized Band is available)
